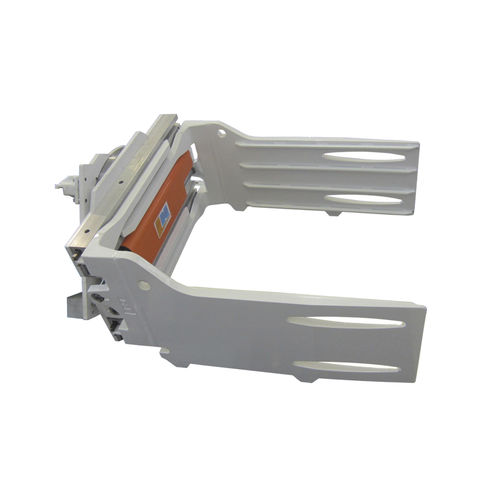

Bale clamp Rotating RBC-B/C

Rotating bale clamp applies efficiently and economically handling stacking or rotating nearly any type of baled products including cotton wool, synthetic, textile bales, corrugated, newsprint, rag, hay metal and other scrap bales in palletless operation condition. Commonly equipped in industries as mill, material recycling, railway transportation, logistic warehouse, port, textile and related. - - Capacity: 1900Kg/2700Kg - - Mounting Class: III - - Opening Range: 440mm - 1730mm 560mm – 1910mm - - Arm Height: 415mm/460mm - - Arm Length: 982mm/1180mm - - Frame Width: 1040mm – 1050mm - - Arm Thickness: 75mm/80mm - - Overall Height: 775mm - - Vertical Center of Gravity: 335mm - - Weight: 620mm/790mm - - Effective Thickness: 283mm/298mm - - Horizontal Center of Gravity: 300mm/432mm Recommend Hydraulic Flow: 40L/min –120L/min Pressure: 160 Bar Note: 1. Please contact FLT manufacture for the residual capacity of attachment 2. 2 additional hydraulic circuits 3. Opening range refers to distance between arm tips 4. Dimension E refers to operation space required for arm * Further technical details are available upon request
