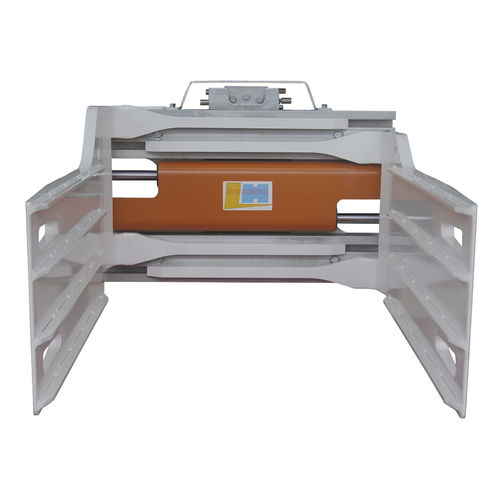

Bale clamp RBC-B/C D-series

Bale clamp applies efficiently and economically handlingastacking or rotating nearly any type of baled products including cotton wool, synthetic, textile bales, corrugated, newsprint, rag, hay, metal and other scrap bales in palletless operation condition. Commonly equipped in industries as paper mill material recycling, railway transportation, logistic warehouse, port, textile and related. - - Capacity: 2000Kg/2800Kg - - Mounting Class: II/III - - Opening Range: 430mm – 2500mm - - Arm Height: 415mm - 580mm - - Arm Length: 750mm – 1500mm - - Frame Width: 1015mm – 1600mm - - Arm Thickness: 75mm/80mm/85mm - - Overall Height: 707mm/757mm/773mm - - Vertical Center of Gravity: 173mm – 242mm - - Weight: 410Kg – 811Kg - - Effective Thickness: 130mm/150mm - - Horizontal Center of Gravity: 205mm – 417mm Recommend Hydraulic Flow: 40L/min –120L/min Pressure: 160 Bar Note: 1. Please contact FLT manufacture for the residual capacity of attachment 2. 2 additional hydraulic circuits required 3. Opening range refers to distance between arm tips 4. Dimension E refers to operation space required for arm 5. With sideshifting * Further technical details are available upon request
