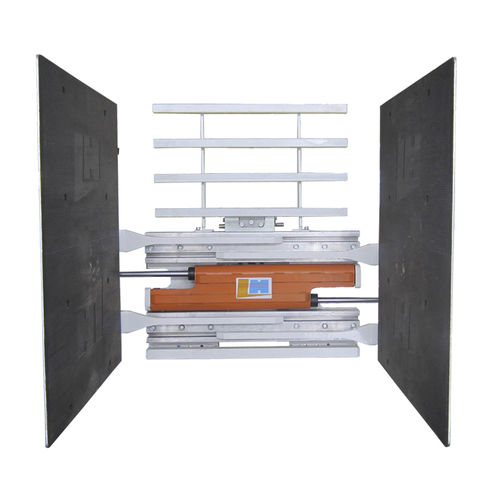

Carton lifting clamp ZXC -B/C

verticalhorizontalhydraulic

Carton clamp can handle and stack various goods packed in cartons palletless with high efficiency and safty. Design of lateral sliding arm for smooth clamping and sideshifting function. Large contact pad plus four stage adjusting valve as option to gurrantee clamping pressure in right scale so as not to damage the goods handled. It is widely used in tobacco and white goods industries, to handle loads such as tobacco products carton, refrigerator, LED, washing machine and etc. - - Capacity: 1900Kg - - Mounting Class: II/III - - Opening Range: 410mm – 2400mm - - Plate Height: 1220mm/1320mm - - Plate Length: 1220mm/1420mm/1600mm - - Vertical Center of Gravity: 328mm – 375mm - - Plate Thickness: 83mm/90mm - - Weight: 705Kg – 1110Kg - - Effective Thickness: 132mm - - Horizontal Center of Gravity: 435mm – 654mm Recommend Hydraulic Flow: 40L/min –120L/min Pressure: 160 Bar Note: 1. Please contact FLT manufacture for the residual capacity of attachment 2. 2 additional hydraulic circuits required 3. Opening range refers to distance between arm tips 4. Dimension E refers to operation space required for arm 5. With sideshifting * Further technical details are available upon request
