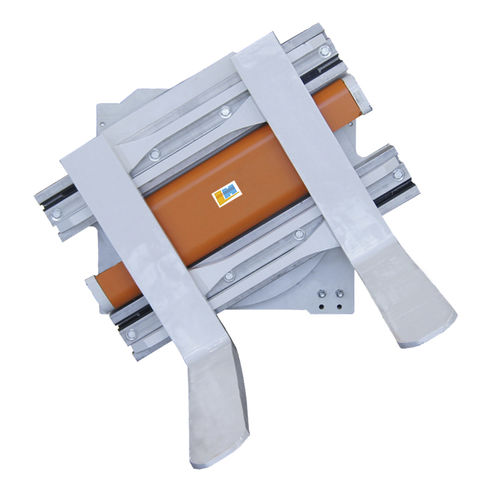

Rotary pallet fork CJX -B/C

for forklift truckshandlingfor materials handlers

Rotating fork clamp with one pair fork is generally designed to operate the load with rotating and clamping needs. Focusing and reflecting the functions of normal forklift application of handling, it also collects fork positioning, rotating and clamping in one body. It also can be developed into very special clamp by applying different versions of slip-on arms that suits for related operations. Used to be applied in recycling,machining,food and logistic industries. - - Capacity: 1600Kg/2300Kg/3200Kg - - Mounting Class: II/III/IV - - Opening Range: 20mm – 2100mm - - Frame Width: 940mm - 1450mm - - Vertical Center of Gravity: 262mm - 306mm - - Weight: 561Kg – 1150Kg - - Effective Thickness: 287mm – 383mm - - Horizontal Center of Gravity: 188mm – 354mm Recommend Hydraulic Flow: 40L/min –120L/min Pressure: 160 Bar Rotating Speed: 3.2r/min@60L/min/5.2r/min@60L/min Rotating Torque:9000Nm@160bar/11000Nm@160bar Note: 1. Please contact FLT manufacture for the residual capacity of attachment 2. 2 additional hydraulic circuits required 3. Opening range refers to distance between arm tips 4. Special slip-on arms are available upon request. * Further technical details are available upon request
