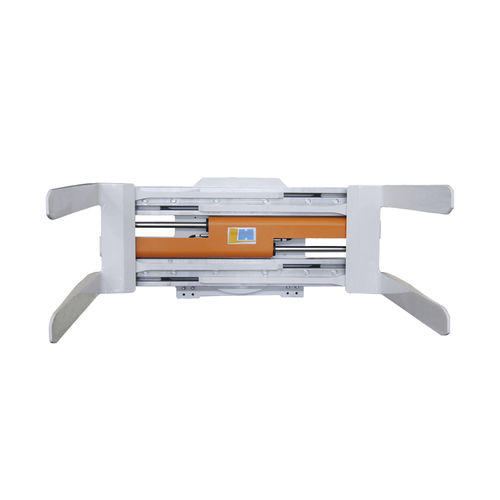

Rotary pallet fork XZC -B/C

for forklift trucksfor materials handlersISO base

Rotating fork clamp with two pairs of fork is generally designed to handle he load with pallet or in bales , also to be used as pallet inverter for changing pallet of load before deliverying in industries as petrochemical, food, fertilizers, cement and logistic warehouse - - Capacity: 1600Kg/2300Kg - - Mounting Class: II/III - - Opening Range: 500mm – 2340mm - - Frame Width: 940mm - 1710mm - - Vertical Center of Gravity: 313mm - 400mm - - Weight: 627Kg – 877Kg - - Effective Thickness: 290mm – 353mm - - Horizontal Center of Gravity: 287mm – 365mm Recommend Hydraulic Flow: 40L/min –120L/min Pressure: 160 Bar Rotating Speed: 5.2r/min@60L/min Rotating Torque:9000Nm@160bar Note: 1. Please contact FLT manufacture for the residual capacity of attachment 2. 2 additional hydraulic circuits 3. Opening range refers to the internal spacing of the tip of clamp arm * Further technical details are available upon request
