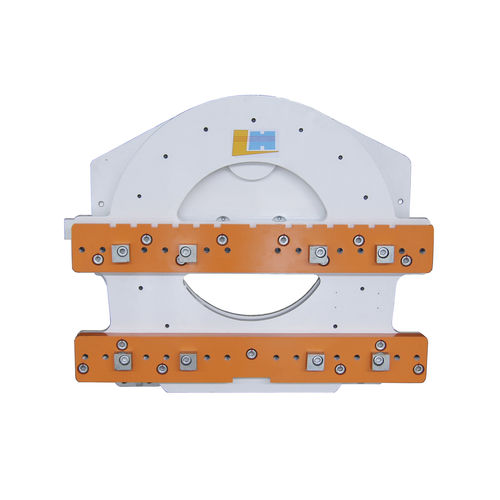

Load rotator XZQ -B/C/D E-series

hydraulic

Used to rotate load hydraulically. Applied in industries that need to turn its load or pour its load’s con-tent. Commonly used in machining companies or recycling industries to dispose scrap _petrochemical and pharmaceutical industries for pouring of contents from container. Equipped with sideshifting function, it enables forklift to move its load from side to side to ease adjustment, stacking, loading and un-loading of goods. - - Capacity: 1500Kg – 8000Kg - - Mounting Class: II/III/IV - - Carriage Width: 730mm – 1800mm - - Fork Max. Spacing: 645mm – 1600mm - - Min. Truck Carriage Width: 800mm/1016mm/1150mm - - Vertical Center of Gravity: 280mm – 380mm - - Weight: 193Kg – 820Kg - - Effective Thickness: 133mm – 272mm - - Horizontal Center of Gravity: 62mm – 166mm Recommend Hydraulic Flow: 40L/min – 120L/min Pressure: 160 Bar Note: 1. Please contact FLT manufacture for the residual capacity of attachment 2. 1 additional hydraulic circuit required 3. Without forks _special forks to be added upon request * Other technical details available upon request
