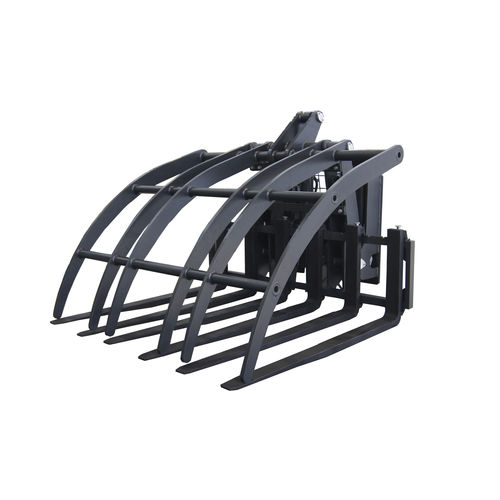

Hydraulic material handler FLJ -C/D

The hinged broke handler is able to enlarge the upward and downward tilt angle of fork carriage ( up-ward 10°-15°, downward 45°), and the arms will hold the goods to avoid damages in transit. Moreover the hinged broke handler used with containers, such as bucket, will dump bulk cargo from the bucket efficiently and safely. It is widely used in recycling, and waste management, great improve the flexibili-ty of loading and unloading of the forklift. - - Capacity: 2500Kg/4500Kg - - Mounting Class: II/III/IV - - Fork Length: 1200mm/1300mm/1500mm - - Carriage Width: 1200mm/1400mm/1860mm - - Tile Angle – Forks ( Up/Down): 45°/10° - - Raker Width: 1000mm – 1608mm - - Raker Opening Min-Max: 31 – 2529mm - - Number of Raker: 2-6 - - Vertical Center of Gravity: 552 – 616mm - - Weight: 495KG – 1150KG - - Effective Thickness: 346mm – 410mm - - Horizontal Center of Gravity: 367mm – 599mm - - Recommend Hydraulic Flow: 60L/min Pressure: 160 Bar Note: 1. Please contact FLT manufacture for the residual capacity of attachment 2. 2 additional hydraulic circuits required * Further technical details are available upon request
