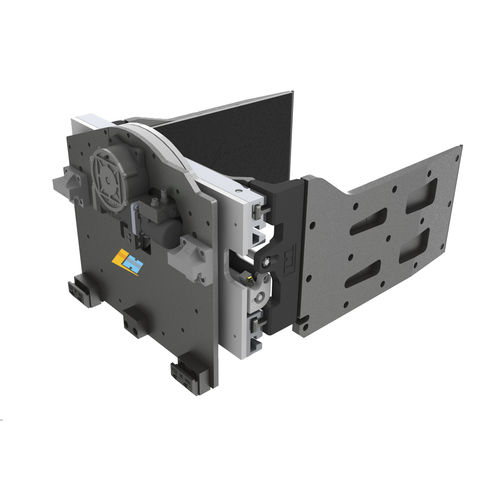

Forklift truck hydraulic clamp GBX -B/C series

Multi-purpose clamp can handle and rotate unitised or box-shaped products palletless with high efficiency and safty. Design of lateral sliding arm for smooth clamping and sideshifting function and 360° rotation. . Large contact pad can reduce the posibilities of distortion or damaging to load while handling. It is widely used in tobacco and logistic warehouse. - - Capacity: 1600Kg/2300Kg - - Mounting Class: II/III - - MTG.Angel: 0° - - Opening Range: 410mm – 1940mm - - Arm Height: 462mm/600mm/610mm - - Arm Length: 615mm/1015mm/1190mm - - Frame Width: 1000mm/1016mm/1040mm - - Arm Thickness: 50mm/61mm/75mm - - Vertical Center of Gravity: 335mm/352mm - - Weight: 530Kg – 832Kg - - Effective Thickness: 233mm/277mm/312mm - - Horizontal Center of Gravity: 210mm/340mm/345mm Recommend Hydraulic Flow: 40L/min –120L/min Pressure: 160 Bar Rotating Speed: 5.2r/min@60L/min Rotating Torque:9000N.m@160bar Note: 1. Please contact FLT manufacture for the residual capacity of attachment 2. 2 additional hydraulic circuits 3. Opening range refers to distance between arm tips 4. Dimension E refers to operation space required for arm * Further technical details are available upon request
