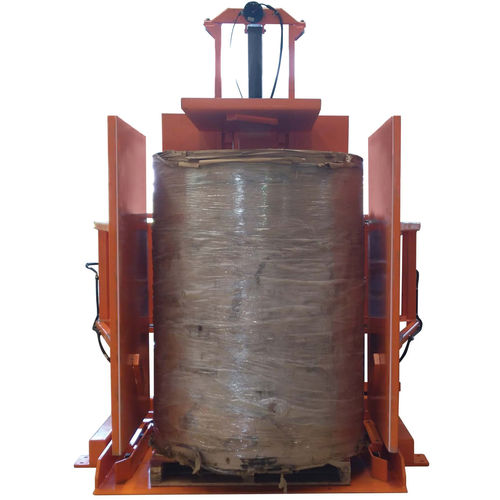

Pallet changer TPQ15B B-series

Floor flush design to enable loading of load by pallet trucks. Enable changing of pallet for stable load. Specially design backward tilting change pallets without inverting load. Simple and safe to operate. Available in optional automatic sequencing control and fully automated in-line design. - - Capacity: 1500Kg - - Safety Guard Fencing Size: 3182*5052*1770mm - - Pallet Inverter Size: 1950*3760*2840mm - - Platform Size: 1200mm - - Upper Arm Opening Range: 600 – 2050mm - - Lateral Support Opening Range: 780 – 1490mm - - Lateral Clamping Range: 750 – 1370mm - - Rotating Angle: 105° - - Weight: 2800Kg Recommend Hydraulic Flow: 20L/min Pressure: 16 Bar Note: 1. Working Pressure: 16MPa 2. Operational voltage type outer power rating upon requested * Further technical details available upon request
