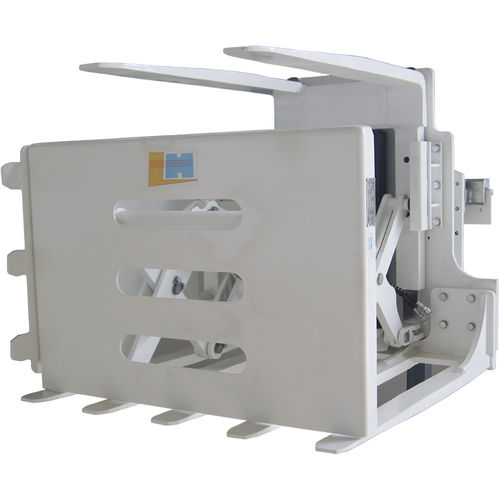

Forklift truck push pull system TCX15D-C

Designed for palletless handling. Used to transoprt and stack loads packed in bags that stacked on pallets, such as plastic raw material, concrete, fertilizer, feed, sugar and etc. As loading truck, rotat-ing, separating load with pallet and pushing the load out to destination, while the pallet is kept, will finish the operation. Lower fatigue for operator, safety and high efficiency. - - Capacity: 1500Kg - - Mounting Class: III - - Opening Range: 950 – 1550mm - - Launch Distance: 1146mm - - Side Arm Width: 913mm/1136mm - - Side Arm Stroke: 700 – 800mm - - Plate Width: 1300mm - - Fork Distance: 870mm - - Push Plate Size: 910*1300 - - Weight: 1300Kg/1700Kg - - Effective Thickness: 430mm - - Horizontal Center of Gravity: 337mm – 361mm - - Sideshifting: ±130mm Recommend Hydraulic Flow: 30L/min Pressure: 160 Bar Note: 1. Please contact FLT manufacture for the residual capacity of attachment 2. 2 additional hydraulic circuit required * Further technical details are available upon request
