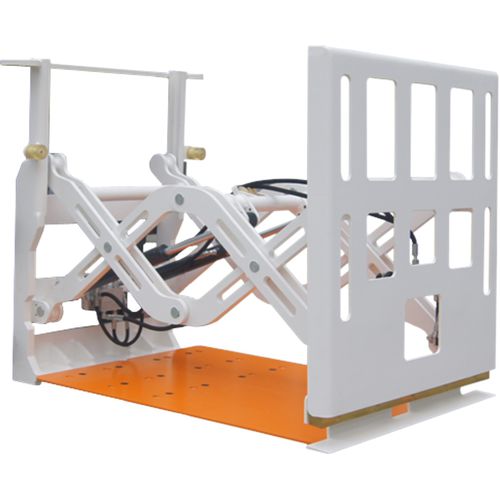

Forklift truck push pull system TLQ20F/HF/H-series

Push-Pull are designed for palletless packed goods handling and stacking operations. With the aid of slipsheet which replaces pallet, sheets with loads on were pulled onto the carrying plate of set and were pushed out to spot of destination. It fetures of high productivity with easy maintenance and changing, lower running cost are gained. And mainly used in dustries such in petrochemical, chemical, pharmaceutical, logistic industries and any other industries that uses palletless handling systems. - - Capacity: 2000Kg - - Mounting Class: II/III - - Faceplate Size: 1280*965mm/1190*965mm/1460*965mm - - Platen Size: 1280*465mm/1190*465mm/1460*465mm - - Stroke: 1270mm/1180mm/1430mm - - Min Truck Carriage Width: 1000mm - - Vertical Center of Gravity: 268mm/270mm/275mm - - Weight: 422Kg – 454Kg - - Effective Thickness: 200mm/221mm - - Horizontal Center of Gravity: 279mm – 335mm Recommend Hydraulic Flow: 40L/min –120L/min Pressure: 160 Bar Note: 1. Please contact FLT manufacture for the residual capacity of attachment 2. TLQ20F does not equip sideshifting function, available upon request 3. 1 additional hydraulic circuit required * Further technical details are available upon request
