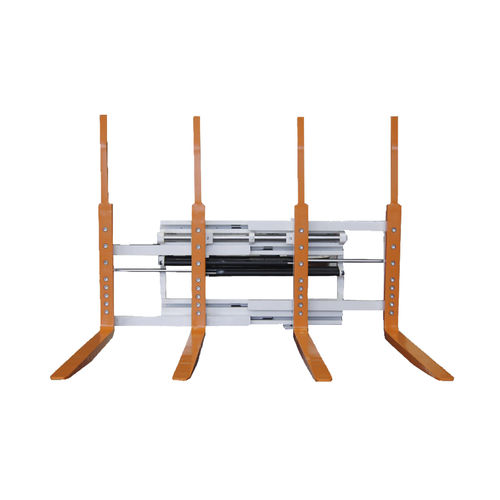

Adjustable multiple fork TPC -B/C

for pallet handling

Enable operator to move forks to handle 1 or 2 loads at one time to improve productivity. Be able to move loads apart or closer together hydraulically when handling 2 loads at a time. When equipped with sideshifting function, it enables the forklift to move its load from side to side to ease stacking, loading and unloading of goods. Used in most industries which has high volume of unitized loads, like beverages, petrochemical, food and logistics. - - Capacity: 2500Kg/3000Kg/3200Kg - - Mounting Class: II/III - - Truck Carriage Width: 914mm/980mm - - Frame Width: 1100mm/1200mm - - Weight: 462Kg – 650Kg - - Effective Thickness: 226mm/231mm/235mm/254mm - - Horizontal Center of Gravity: 188mm – 357mm - - Vertical Center of Gravity: 195mm – 339mm - - Opening Range ITI: 310mm – 975mm - - Opening Range OTO: 560mm – 2200mm - - Fork Set Distance: 560mm/600mm/610mm - - Sideshifting: ±100 Recommend Hydraulic Flow: 40 – 120L/min Pressure: 160 Bar Note: 1. Please contact FLT manufacture for the residual capacity of attachment 2. 2 additional hydraulic circuits required * Other technical details available upon request
