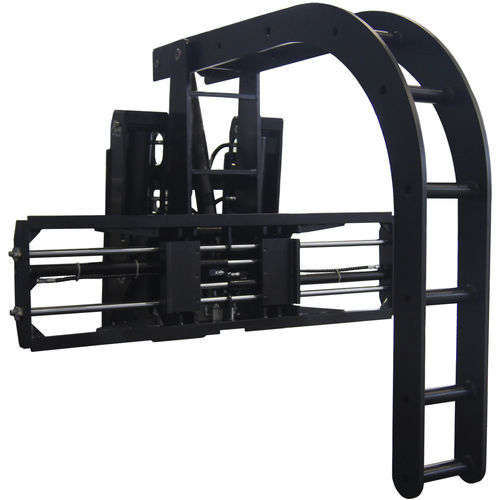

Long product materials handling clamp GGC -C/D

for pipefor forklift trucks

Steel pipe clamp can efficiently handle and stack hard, long cylindrical products like pipes under nor-mal temperature without pallet. Widely used in construction, logistics industries for handling the steel pipe etc. The functions of tipping and withhold （upward to 40° and downwards to 6° ）can greatly improve the flexibility of forklift，operate safety and handling efficiency. Meanwhile different holding arms for different types of application available upon request. - - Capacity: 1200Kg – 4500Kg - - Mounting Class: III/IV - - Fork Tilt Angle (Up/Down): 40°/6° - - Grab Opening Range: -190 – 1650mm - - Fork Opening Range: 300 – 1700mm - - Arm Height: 1550mm/1925mm - - Arm Length: 1275mm/1750mm - - Frame Width: 1800mm/1860mm - - Clamp Arm Width: 60 – 365mm - - Vertical Center of Gravity: 490mm – 538mm - - Weight: 750 – 1120KG - - Effective Thickness: 446mm – 476mm - - Horizontal Center of Gravity: 350mm – 448mm Recommend Hydraulic Flow: 38 – 60L/min Pressure: 160 Bar Note: 1. Please contact FLT manufacture for the residual capacity of attachment 2. 2 additional hydraulic circuits and 1 sets of solenoid valve kits required 3. Available with sideshifting and 1 sets of solenoid valve kits required extra 4. Without Forks * Further technical details are available upon request
