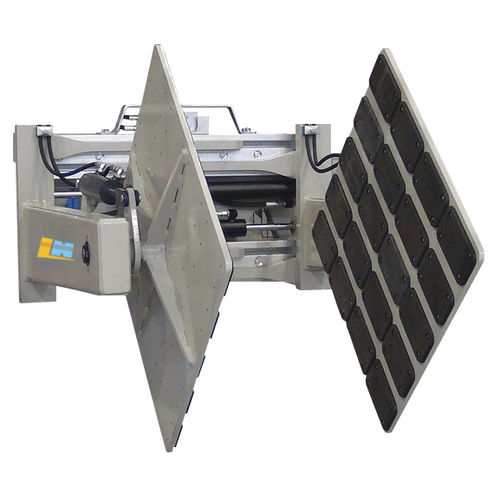

Carton lifting clamp YYC -B

verticalhydraulic

Tipping tobacco carton clamp is design wholly for tobacco carton handling and emptying tasks with high efficiency and safty. Design of lateral sliding arm can lead for smooth clamping and sideshifting. Its small and screwed fastening contact pad can reduce the posibilities of distortion or damaging to loads while handling, and as be worn it can be replaced and reused again in other place of clamp arm. Option of 180° can be available as request. - - Capacity: 1400Kg - - Mounting Class: II - - Opening Range: 230mm – 1390mm - - Clamping Pad Size: 800×800 - - Arm Length: 954mm - - Tipping: 90° - - Frame Width: 940mm - - Vertical Center of Gravity: 158mm - - Weight: 600Kg - - Effective Thickness: 183mm - - Horizontal Center of Gravity: 605mm Recommend Hydraulic Flow: 40L/min –120L/min Pressure: 160 Bar Note: 1. Please contact FLT manufacture for the residual capacity of attachment 2. 2 additional hydraulic circuits 3. Opening range refers to distance between arm tips 4. Dimension 250 mm refers to operation space required for arm entering 5. Also available for 180° tippling, only 1 set of solenoid valve kit required * Further technical details are available upon request
