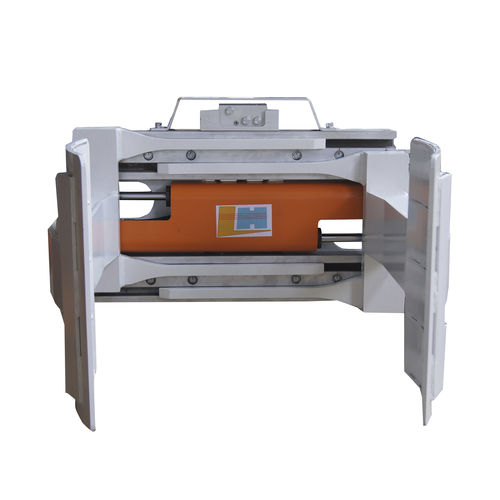

Forklift truck materials handling clamp LTJ -B

for tires

Designed for tyres handling and stacking operations and applied wildly in tyre manufactures，ware-house and logistic transportation companies. Lateral sliding arm design and side shifting function guarantee the smooth clamping and easy entering with high production efficiency. Following lower running costs and high safety. - - Capacity: 1400KG - - Mounting Class: II - - Opening Range: 390-1550mm - - Frame Width: 940mm - - Arm Length: 1020mm - - Hook Spread: 700mm - - Overall Height: 670mm - - Contact Pad Size: 450*600mm - - Vertical Center of Gravity: 229mm - - Weight: 375KG - - Effective Thickness: 130mm - - Horizontal Center of Gravity: 290mm Recommend Hydraulic Flow: 38L/min Pressure: 160 Bar Note: 1. Please contact FLT manufacture for the residual capacity of attachment 2. With side shifting, 2 additional hydraulic circuit required Without side shifting, 1 additional hydraulic circuit required 3. Opening range refers to distance between arm steel pad * Further technical details are available upon request
