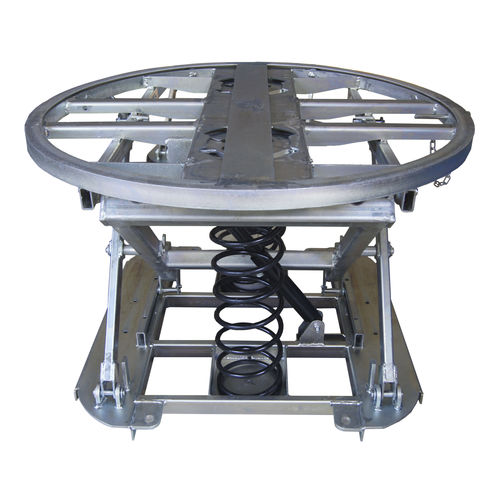

Scissor lift table 3615

stationaryloading dock

Spring Lift Table It automatically keeps the pallet or spillage load at the optimum working height when loading or unloading goods. The table can be raised and lowered 475mm while the rotating upper ring allows for pallet rotation during stacking. With an optimum working height operator fatigue is reduced while productivity is increased. Rotate Pallet Table comes complete with three springs. Either one, two or three of these are used as required depending on weight of the pallet. A shock absorber provides gradual and controlled raising and lowering. Comes complete with fork pockets to enable easy transportation by forklift. - Capacity: 2000kg - Compress height: 230mm - Extended height: 705mm - Turntable Diameter: 1110mm - Unit weight: 168kg - Surface treatment: galvanized finish
