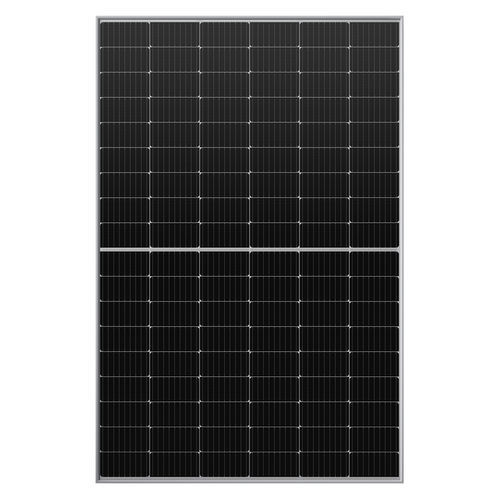

Monocrystalline silicon PV solar module LR5-54HPH-4 series
CEISOTUV

Add to favorites

Compare this product

Characteristics

Technology

monocrystalline silicon

Certifications

TUV, CE, ISO, IEC

Other characteristics

black, roof-mount, smart

Peak power (Wp)

Min.: 306.5 W

Max.: 420 W

Open-circuit voltage

Min.: 35.2 V

Max.: 37.8 V

Short circuit current

Min.: 11.2 A

Max.: 14 A

Max power voltage

Min.: 29 V

Max.: 31.3 V

Max power current

Min.: 10.6 A

Max.: 13.2 A

Module efficiency

21.3 %

Lenght

1,722 mm
(68 in)

Width

1,134 mm
(45 in)

Height

30 mm
(1 in)

Weight

20.8 kg
(45.86 lb)

Description

Smart Soldering Uniform smart soldering increases the power and efficiency of the module, and improves the power load capacity. Optimized Module Size M10 wafer and 54 cell design, fully considering the size and weight of modules in distributed applications Smart Module Packaging and Logistics Smart module packaging solutions are used to achieve high reliability, low-cost transportation and logistics. Optimized Electrical Parameters The working current is about 13A, which is perfectly adapted to mainstream string inverters. Gallium-doped Technology Gallium-doped technology overcomes LID degradation and guarantees the long-term power generation of the module. LONGi's high-efficiency PV modules are widely used all over the world, from alpine grasslands to desert wastelands, and from ponds and vegetable beds to household dwellings. LONGi's ultra-high-value PV module products continue to benefit customers and local economy with its advantages of "higher power, lower degradation and higher reliability".
