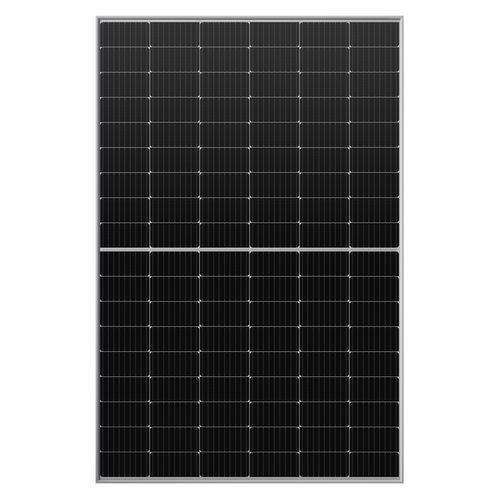

Black PV solar module LR5-72HPH-5 series
smart

Add to favorites

Compare this product

Characteristics

Other characteristics

black, smart

Peak power (Wp)

Max.: 550 W

Min.: 411 W

Open-circuit voltage

Max.: 50.1 V

Min.: 46.8 V

Short circuit current

Max.: 14.1 A

Min.: 11.3 A

Max power voltage

Max.: 42.3 V

Min.: 39 V

Max power current

Max.: 13.3 A

Min.: 10.6 A

Module efficiency

21.3 %

Lenght

2,278 mm
(90 in)

Width

1,134 mm
(45 in)

Height

35 mm
(1 in)

Weight

27.5 kg
(60.63 lb)

Description

Smart Soldering Uniform smart soldering increases the power and efficiency of the module, and improves the power load capacity. Optimized Module Size M10 wafer and 54 cell design, fully considering the size and weight of modules in distributed applications Smart Module Packaging and Logistics Smart module packaging solutions are used to achieve high reliability, low-cost transportation and logistics. Optimized Electrical Parameters The working current is about 13A, which is perfectly adapted to mainstream string inverters. Gallium-doped Technology Gallium-doped technology overcomes LID degradation and guarantees the long-term power generation of the module.
