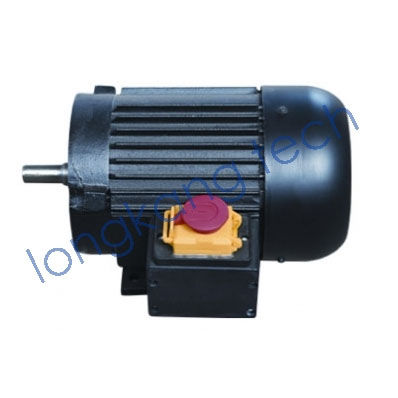

Single-phase motor YU seriesasynchronous220 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- single-phase
- Type
- asynchronous
- Voltage
- 220 V
- Power
Min.: 250 W
(0.34 hp)Max.: 2,200 W
(2.991 hp)- Torque
0.3 Nm, 0.32 Nm, 0.33 Nm, 0.35 Nm, 1.7 Nm
(0.2213 ft.lb, 0.236 ft.lb, 0.2434 ft.lb, 0.2581 ft.lb, 1.2539 ft.lb)- Rotational speed
1,400 rpm, 2,800 rpm
(8,796.46 rad.min-1, 17,592.92 rad.min-1)
Description
YU series motor is full-close rat-case single-phase capacitor-start asynchronous motor self-cooled by fan.The motor is of the characteristic of simple structure.safe and reliable working.easy maintenance.excellent technique guideline and so on
As ordinary-purpose motor, the series is used to small machine tool, latric appliance, electronic apparatus, indoor appliance and so on
Working condition
The motor can work on the rated power continuously under the following conditionthe altitude is no more than 1000m and the eir.iroumental air
temperature is no more than +40"C.
