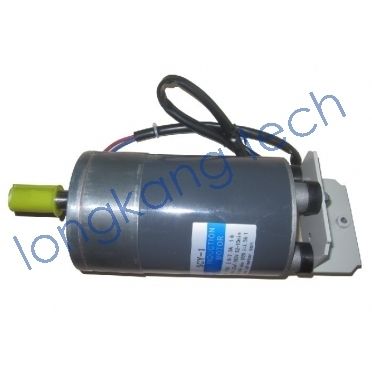

AC gear-motor 90SCY-1planetaryparallel-shaftsolid-shaft
Add to favorites
Compare this product
Characteristics
- Motor type
- AC
- Type
- planetary
- Shaft orientation
- parallel-shaft
- Shaft configuration
- solid-shaft
- Power
- 50 W...100 W
- Torque
- 1 - 5 Nm, 5 - 10 Nm, 0.5 - 1 Nm
- Gear ratio
7.56 unit
- Operating temperature
Max.: 40 °C
(104 °F)Min.: -10 °C
(14 °F)
Description
Description
Model: 90SCY-1
Rated Voltage: 115VAC
Frequency: 50//60HZ
Rated Power: 90W
Rated Current: 2.6/2.OA
Rated Speed: 1350/1650RPM
Rated Torque: 0.63/0.52mN.m
Insulation Résistance: > 100MQ
Capacity:25uF/250VAC
Insulation Class: B IP: 20
Dielectric strength: 1800V/S/5mA
Noise: ^65dB
Gearbox Ratio: 7.56:1
Output Torque from Gearbox: 4.2/3.5Nm
Stall torque: 6.3/5.25Nm
Environment: -10°C~ +40°C
