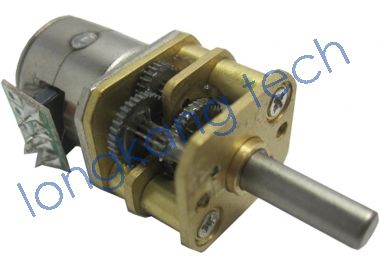

Miniature gear-motor SM10stepperspurparallel-shaft
Add to favorites
Compare this product
Characteristics
- Motor type
- stepper
- Type
- spur
- Shaft orientation
- parallel-shaft
- Shaft configuration
- solid-shaft
- Voltage
- 5 V
- Torque
- 0 - 0.1 Nm
- Other characteristics
- miniature
- Gear ratio
10 unit, 20 unit, 30 unit, 50 unit
Description
Description
Mini Stepper gear motortechnical datas:
1 Rated Voltage: 5VDC
2 current Per phase: 410mA/phase
3 Coil Résistance: 12.2±7%ohm/phase
4 No. Of Phase: 2phase
5 Step angle: 1.8 degree
6 Excitation Method: 2 phase excitation 7Driver mode: Bipolar Drice
8 Pull-in Torque: more than 60gf-cm at 500PPS
9 Holding Torque: More than 75 gf-cm AT 0 pps 10Max Response Frequency: more than 2000pps
11 Max starting Frequency: more than 1000 pps
12 Insulation class: class E for coils
13 Insulation Strength: 100V AV for one second
14 Insulation résistance: 50M Q DC500V
15 Operating Température Range: 0~+55°c
Gearbox Ratio: 1:10 - 1:20 1:30 and 1:50
