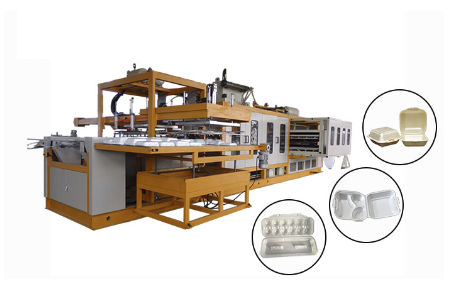

This machine developed by combining the domestic and foreign equipment and advantages, is a set of hydraulic pneumatic servo drive for an automatic forming cutting stacking machine. The main electrical components, such as vacuum pump, PLC, made in Japan and Germany, ensure the reliability of the equipment operation, and can be used for hot forming process many kinds of plastic material, it can produce PS, PVC, PE, PP, PET, HIPS etc. all kinds of packaging products, materials used in food, medical supplies, electrical components, tourism products, toys, textile, etc.
The biggest advantage is forming cutting and product collection integration, reduce work link, produce the product can be stacked directly collect, this will greatly save time reduce the intensity of work and greatly saves labor.
Power supply
Three phase 380V/50Hz
Production efficiency
2.8-5 s/mold
Installed power (approximately)
150KW
Total weight (approximately)
16-18T
Mounting size
14.2mx5.8mx3.14m
Compressed air
0.4 0.7 m3/min,0.7Mpa
Cooling water
1T/h
