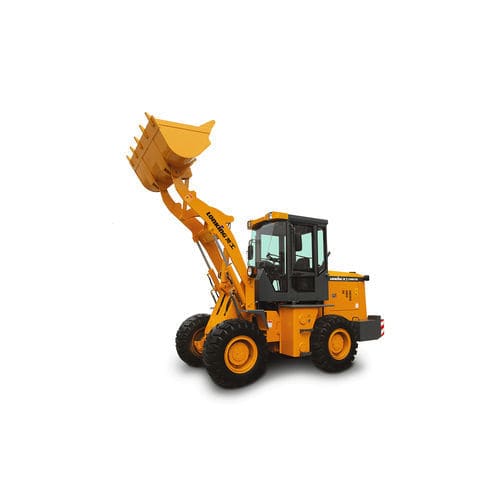

Wheeled loader CDM816D

BASIC - Bucket Capacity - 0.95m³ Rated Payload - 1600kg Traction Force - 50kN Breakout Force - 48kN L×W×H - 5700×1950×2930mm ENGINE - Manufacturer/Model - YI TUO/YT4A2-24（Nation Ⅱ） Rated Torque - 235N·m/1680-1800rpm DRIVE TRAIN - Transmission Type - Countershaft Powershift Shift Type - Fixed Shaft Hydraulic Shift Spur Gear Pressure of Transmission - 1.2-1.5MPa Gear - 2F/2R Torque Converter - Single-stage, Single-turbine, 3-element Torque Ratio - 3.7 Main Reducer - Spiral Bevel Gear Single-stage Reduction Final Reducer - Planetary Reduction Tire - 16/70-20 Travel speed-Forward - 8/21km/h Travel speed-Reverse - 8/21km/h BRAKE SYSTEM - Service Brake - Air Drive, Four Wheel Brake (Dry) Setting Pressure - 0.78MPa Parking Brake - Flexible Shaft Controlled Drum Brake STEERING SYSTEM - Type - Hydraulic Load Sensor System Steering Pump - Shared With Working Pump System Pressure - 14Mpa Steering Angle - ±35° HYDRAULIC SYSTEM - Type - Pilot Control Working Pump - Gear Pump Flow Rate - 100L/min·2400rpm Control Valve - 2 Spool System Pressure - 16MPa Cycle Time (Sec) - 9.4 ELECTRIC SYSTEM - System Voltage - 24V Battery （ 2 in series) - 2x90 Ah SERVICE REFILL CAPACITY - Fuel Tank - 110L Hydraulic Tank - 110L Transmission - 22.5L Front Axle / Rear Axle - 12.2/12.5L
