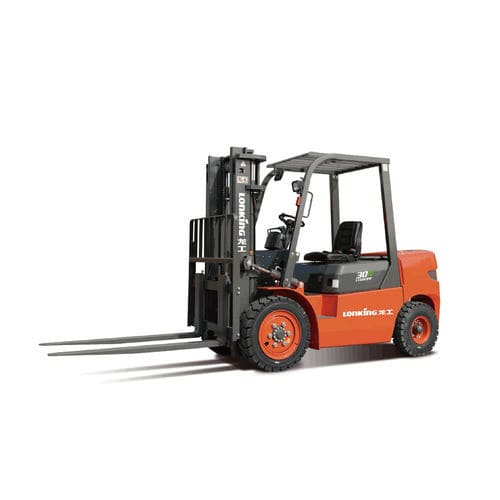

Electric forklift truck CPD20/25/30/35ESL
ride-on

electric forklift truck
electric forklift truck
Add to favorites
Compare this product


Characteristics

Motor type
electric
Operator
ride-on
Carrying capacity

2,000 kg, 2,500 kg, 3,000 kg, 3,500 kg
(4,409.2 lb, 5,511.6 lb, 6,613.9 lb, 7,716.2 lb)

Lifting height

3,000 mm
(118.11 in)

Overall width

1,160 mm, 1,240 mm
(45.7 in, 48.8 in)

Overall length

3,590 mm, 3,650 mm, 3,850 mm, 3,900 mm
(141.3 in, 143.7 in, 151.6 in, 153.5 in)

Load center distance

500 mm
(19.7 in)

Axle loading with maximum load front

4,725 kg, 5,490 kg, 6,520 kg, 7,265 kg
(10,416.8 lb, 12,103.4 lb, 14,374.1 lb, 16,016.6 lb)

Axle loading with maximum load rear

525 kg, 610 kg, 640 kg, 865 kg
(1,157.4 lb, 1,344.8 lb, 1,411 lb, 1,907 lb)

Axle loading without load front

1,300 kg, 1,440 kg, 1,680 kg, 1,760 kg
(2,866 lb, 3,174.7 lb, 3,703.8 lb, 3,880.1 lb)

Axle loading without load rear

1,950 kg, 2,160 kg, 2,480 kg, 2,870 kg
(4,299 lb, 4,762 lb, 5,467.5 lb, 6,327.3 lb)

Travel speed

11 km/h, 12 km/h
(6.8 mph, 7.5 mph)

Lifting speed

Max.: 500 mm/s

Min.: 200 mm/s

Gradeability

15 %, 20 %

Rated output

10 kW
(13.6 hp)

Description

Green environmental protection Zero emission, low noise. Strong Stability High pressure control system Hgih charging efficiency Hgih level of protection Integrated electrical system, protection grade reaches IP65. Wide operating vision Use the wide view frame of internal combustion truck to improve the safety of stacking operation.
