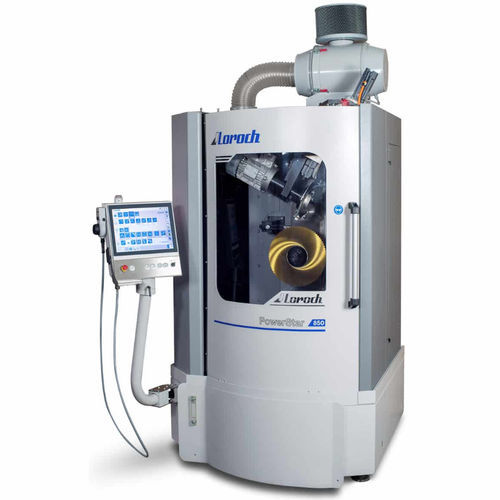

Circular saw blade sharpening machine PowerStar 850

semi-automaticCNCCBN

Sharpening, re-toothing and chamfering of metal-cutting circular saw blades with CBN-abrasive grinding The PowerStar 850 is a flexible, CNC controlled High-Tech-Grinding machine for the complete treatment of Metal Cutting Circular Saws. Semi-automatic chamfering of the saw blade Adjustable chamfer angle Attachment for cutting in chip breaker grooves Range of Operation Saw blade grinding - Ø (40) 130 – 850 (920) mm Saw blade chamfering - Ø (105) 145 – 850 (920) mm Cutting in chip breaker grooves - Ø (115) 180 – 710 mm Tooth pitch - 1 – 40 mm Tooth height - max. 17 mm Number of teeth - 2 – 998 Saw blade thickness - up to 8 mm Features and accessories Operator interface with Icons Adjustable chamfer angle Electronic Hand Wheel Attachment to grind in chip breaker grooves Examples of tooth shapes Curved back tooth with chamfer Straight back tooth Friction tooth Peg tooth / Pendelum teeth Solid carbide tooth Chip breaker grooves
