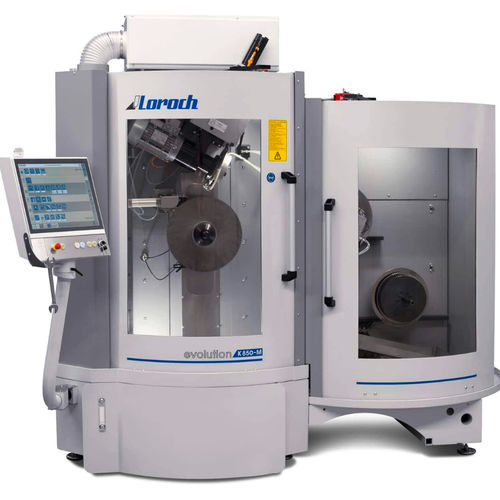

Circular saw blade sharpening machine K850-M

automaticCNCmedium-sized

Compact Service Center for economical grinding of metal cutting saw blades „Our goal was the development of an efficient, powerful, and economical Service Center option for small to medium sized companies.“ Additional capacity due to unmanned running Consistent grinding quality with tight cost control Ideal solution for small to medium-sized companies Working range Saw blade grinding - Ø (40) 130 – 850 mm Saw blade Grinding automatic - Ø (75) 130 – 520 mm Saw blade chamfering - Ø (105) 145 – 850 mm Tooth pitch - 1 – 40 mm Tooth height - max. 17 mm Number of teeth - 2 – 998 Saw blade thickness - up to 8 mm Magazin loading capacity - 40 saw blades Features and accessories User-friendly programming Reduction ring to create a bore size siutable to the arbor in use Automatic saw blade handling Reduction ring Reduction ring to create a bore size siutable to the arbor in use Clear stack programming layout Reduction ring to create a bore size siutable to the arbor in use evolution K850-M HM- und HSS-filter HM- und HSS-filter Polar Kühler mit Filter Examples of tooth shapes Curved back teeth with chamfer Peg teeth Pendelum teeth Carbide teeth of a thin kerf saw blade (TK-saw) TK-saw Straight back teeth Friction teeth Solid carbide teeth
