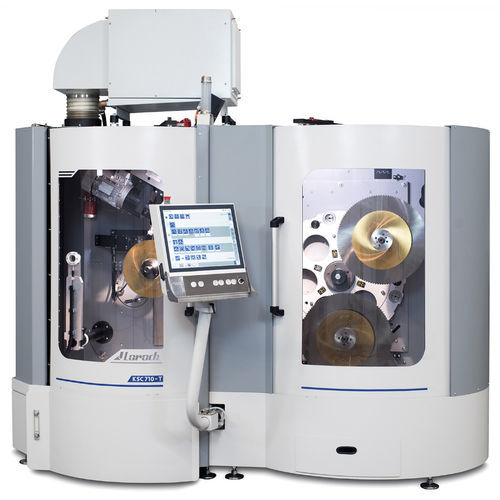

Circular saw blade sharpening machine KSC 710-T

automaticCNC

Powerful Service-Center for metal cutting circular saw blades „Our main goal was an enhancement of the performance of the successful and well known KSC 710 model to meet the growing market requirements.“ High capacity due to extra shifts and a large saw blade magazine with three or six blade stacks Consistent grinding quality with tight cost control Ideal High-Tech solution for service and production Working range Saw Blade Grinding - Ø (40) 130 – 710 mm Saw Blade Grinding automatic - Ø (75) 130 – 560 mm Saw Blade Chamfering - Ø (105) 145 – 710 mm Cutting in chip breaker grooves - Ø (120) 185 – 560 mm, thickness >= 1.6 mm Tooth pitch - 1 – 55 mm Tooth height - max. 17 mm Number of teeth - 2 – 998 Saw blade thickness - up to 8 mm Magazine loading capacity - max. 80 (160) saw blades Features and accessories Clear stack programming layout Automatic handling Re-toothing Reduction ring to create a bore size siutable to the arbor in use Laser measurement system Reduction ring to create a bore size siutable to the arbor in use HM und HSS-Filter Polar chiller with filter Reduction ring to create a bore size siutable to the arbor in use Examples of tooth shapes Curved back teeth with chamfer Curved back teeth with chip breaker grooves chip breaker grooves Carbide teeth of a thin kerf saw blade (TK-saw) TK-saw Straight back teeth Friction teeth Solid carbide teeth
