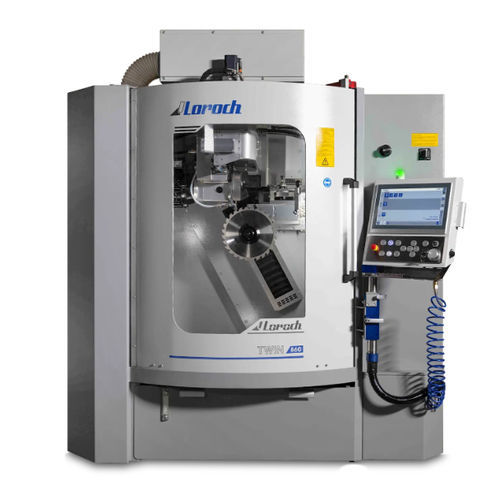

Circular saw blade grinding machine TWIN 860

CNCautomatic

Revolutionary 2-in-1 SOLUTION for grinding of metal-cutting circular saw blades with CBN-abrasive grinding carbide tipped metal and wood circular saw blades Space-saving concept Two different grinding processes in ONE machine High degree of automation Excellent, uniform grinding quality Complete machining with only one grinding wheel Working range HSS Saw blade Ø - 60 – 860 mm Chamfering Ø - > 75 mm Tooth pitch - 1 – 40 mm Cutting width - 8 mm Rake angles - 0 – +27 degrees Clearance angles - +4 – +16 degrees Chamfer / bevel angles - 45 degrees Working range TK (Carbide/Cermet Tipped) Saw blade Ø - 200 – 500 mm Chamfering Ø - > 210 mm Tooth pitch - 1 – 40 mm Cutting width - 5 mm Rake angles - -30 – +20 degrees Clearance angles - +4 – +16 degrees Chamfer / bevel angles - 45 degrees Working range TCT (Tungsten-Carbide-Tipped) Saw blade Ø - 145 – 700 mm Chamfering Ø - > 145 mm Tooth pitch - 6 – 60 mm Cutting width - 5 mm Rake angles - -10 – +25 degrees Clearance angles - 0 – +25 degrees Chamfer / bevel angles - 0 – +45 degrees
