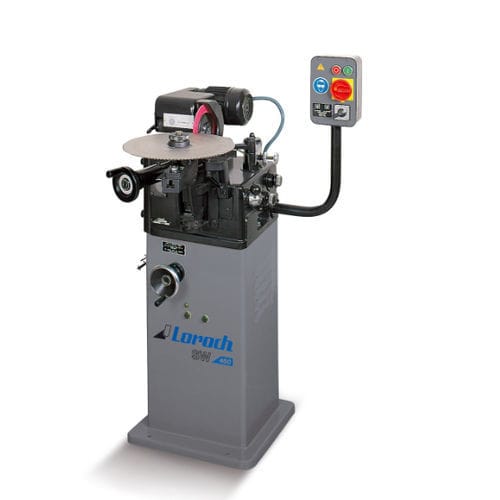

Conventional sharpening machine for grinding HSS and segmental circular saw blades with straight back tooth
The automatic saw grinding machine SW 450 offers you a large range of application possibilities and will convince you by its functional design, easy operation and quick set up facilities.
Sharpening, retoothing and chamfering of metal circular saw blades
Working range for Circular saw blades
Outside diameter - 22 – 450 (550) mm
Blade thickness - up to 8 mm
Tooth pitch - up to 25 mm
Tooth height - up to 8 (12) mm
Tooth shapes - Curved back tooth (Form B, Bw, C according to DIN 1840),
Straight back tooth (Form A according to DIN 1840),
Friction tooth (optional)
