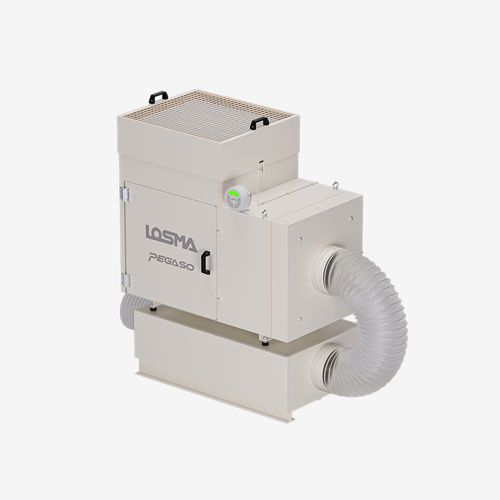

Oil mist collector Pegaso

smokeelectrostaticfor machine tools

Pegaso is a static filter unit for the purification of oily mists, micro-mists and smoke resulting from the use of coolants (emulsion or neat oil). It can be used on all types of machine tools and for all removal operations. It is available in five sizes (S – M – L – XL – XXL), with an increasing filtration efficiency up to 99.95%. The drainage system is fully optimised thanks to the new front impeller capable of significant pollutant separation at the inlet. By combining innovative materials such as F9 filters made of synthetic nanofibers and a well thought-out filter sequence with increasing efficiency, Pegaso is able to offer an extended filter life cycle and high filtration efficiency for all types of work. Pegaso is available in 5 sizes, with variable flow rates depending on processing requirements. It can also be configured with a Pre and Post Filter, both optional, to bring the overall filtration efficiency up to 99.95%. Operation The polluted air in the machine tool is sucked in and, after being evenly distributed by an inlet baffle, passes through the filters provided in sequence. The passage of the air through the new innovative F9 filters made of synthetic nanofibers with high filtering media guarantees maximum air purification. After the various filtration passages (G2 metallic, synthetic 60 PPI and F9 microfiber, as well as the optional H13), the air is finally conveyed back into the surrounding environment.
