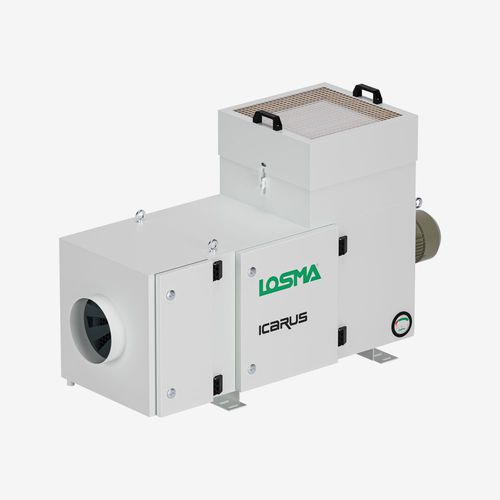

Oil mist collector ICARUS series

smokeelectrostaticmachine-mount

Icarus is a static filter unit for the purification of air containing oily mists, micro-mists and smoke resulting from the use of coolants (emulsion like neat oil). It can be used on all types of machine tools and for all removal operations. It is available in 3 sizes, with flow rates from 600 to 2000 m3/h and with different combinations of increasing filtration efficiency, up to an efficiency of 99.95%. LOSMA guarantees that each filter unit is individually tested through rigorous control procedures. A quality and functional test certificate is issued for each unit. The use of high-efficiency centrifugal fans enables high performance in terms of flow rate and pressure, with considerably reduced installed power and limited energy consumption. Icarus is also remarkably quiet. Operation The polluted air is suctioned in thanks to the vacuum generated by a high-efficiency centrifugal fan placed over the filters. The fan is thus free from any possibility of damage as it only works with clean air, free of any residual pollutants. The air initially passes through a special baffle that has the task of evenly distributing the suctioned air over the entire useful contact surface of the filters, thus ensuring proper utilisation of the filters. The air then passes through a battery of filters with increasing efficiency until an efficiency of more than 95% is reached with pollutant particles even smaller than one micron, which can be raised to 99.95% with the use of an absolute post-filter (HEPA FILTER) in accordance with EN 1822.
