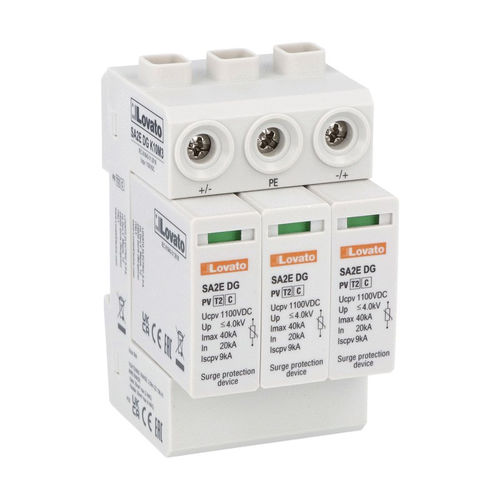

Type 2 surge protector SA2EDGK10M3for photovoltaïc installationsDIN railplug-in
Add to favorites
Compare this product
Characteristics
- Type
- type 2
- Applications
- for photovoltaïc installations
- Other characteristics
- DIN rail, plug-in
- Voltage
1,100 V
- Primary current
20,000 A
- Open circuit voltage
4 kV
Description
Surge protection device type 2 for photovoltaic applications with plug-in cartridge, EN short-circuit current rating Iscpv 9kA, +, -, PE. Without remote contact
•Type of product: SPD
•Type of system: Photovoltaic
•Type / Class: 2
•In [kA]: 20
•Rated voltage [VDC]: 1100
•Type of mounting: Din rail
•Eco-smart solution: Yes
•Order code - SA2EDGK10M3
•Weight [g] - 329
•Qty. per package - 1
•Multiple qty. of packs per order - 1
•Package dimensions [mm] - 110X080X060
•Volume [cm³] - 528
•Bar code [EAN13] - 8013975271384
•HS Code - 85365080
