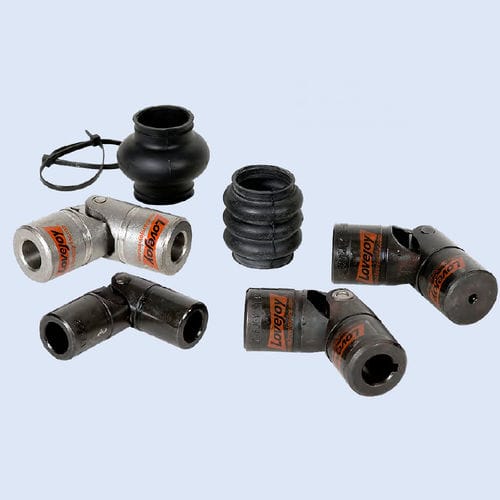

Single universal joint FHS
stainless steelstandardwith needle-roller bearing

single universal joint
single universal joint
single universal joint
single universal joint
single universal joint
Add to favorites
Compare this product


Characteristics

Configuration
single
Material
stainless steel
Other characteristics
standard, with needle-roller bearing, industrial
Diameter

30 mm, 50 mm
(1.18 in, 1.97 in)

Torque

Min.: 20 Nm
(14.7512 ft.lb)

Max.: 7,389 Nm
(5,449.8467 ft.lb)

Operating angle

25 °, 45 °

Speed

Min.: 1,750 rpm
(10,995.6 rad.min-1)

Max.: 6,000 rpm
(37,699.1 rad.min-1)

Description

Universal Joints Industry wide standard Manufactured by Lovejoy since 1946 Wide variety of sizes and options available Universal Joints Product Information Lovejoy has been manufacturing industrial universal joints for over 50 years. Our industrial universal joint product line is well established and provides you with a wide range of standard and specialized products. The shape of the yoke is a special feature which results in exceptionally high strength, yet allows full, free movement of the joint. This accounts for the high horsepower capacity at high speeds.
