Elastomer coupling SW shaftpartssleeve
Add to favorites
Compare this product
Characteristics
- Type
- elastomer
- Product applications
- shaft, parts
- Installation system
- sleeve
- Torque
Max.: 264 Nm
(194.7164 ft.lb)Min.: 16.27 Nm
(12.0001 ft.lb)- Rotational speed
1,750 rpm, 3,600 rpm
(10,995.57 rad.min-1, 22,619.47 rad.min-1)
Description

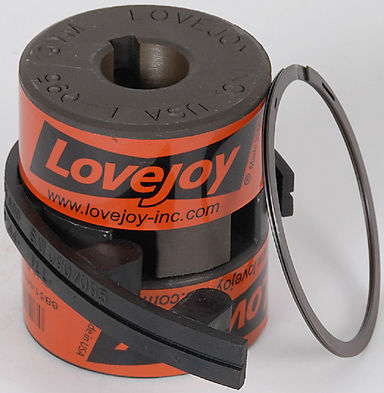

Standard L Type coupling with a snap wrap elastomer with retaining ring
Easy Maintenance (with radially removable elastomer)
Fail Safe – keeps working if elastomer fails (for non-fail safe see Jaw-In-Shear)
A full SW Type coupling is comprised of 3 parts:
2 L Type Coupling Hubs (size L090 to L190)
1 Snap Wrap Spider with Snap Ring
Note: The snap wrap flexible spider design allows for easy removal of the spider without moving the hubs, and close shaft separation all the way up to the hubs maximum bore. Maximum RPM is 1,750 RPM with the SW Type (retaining ring), or 3,600 RPM with the LC Type (with collar). Available in NBR and Urethane only (in limited sizes).
