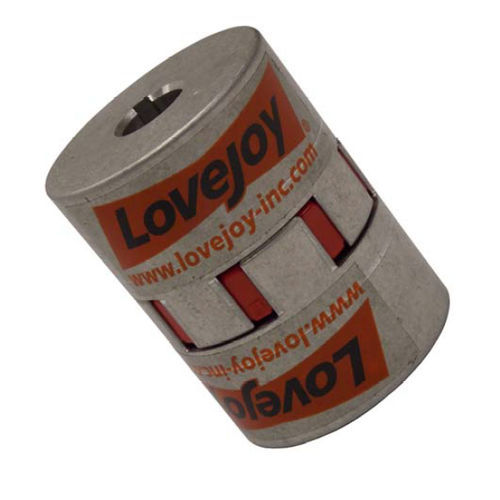

Jaw coupling CJ serieselastomertorsionally flexiblefor shafts
Add to favorites
Compare this product
Characteristics
- Type
- jaw, elastomer, torsionally flexible
- Product applications
- for shafts, flange
- Construction
- double, large
- Other characteristics
- misalignment correction
- Installation system
- sleeve
- Torque
Max.: 69,990 Nm
(51,621.9748 ft.lb)Min.: 7 Nm
(5.1629 ft.lb)- Rotational speed
Max.: 19,000 rpm
(119,380.52 rad.min-1)Min.: 1.2 rpm
(7.54 rad.min-1)
Description
European standard shaft coupling
Improved torsional softness & angular misalignment capability (up to 1.3°)
Fail-safe (will still perform if elastomeric “spider” fails)
No metal to metal contact
Resistant to oil, dirt, sand, moisture, and grease
Design Configurations
Standard Configuration – 2 Standard Hubs, 1 Elastometric Spider
Double Bolt (CJDB) – 2 Shaft Hubs, 2 Jaw Rings, 1 Elastometric Spider
Single Bolt (CJSB) – 1 Shaft Hub, 1 Jaw Ring, 1 Standard Hub, 1 Elastomeric Spider
Large Flange to Hub (CJLFH) – 1 Standard Hub, 1 Large Flange, 1 Elastometric Spider
Double Large Flange (CJDLF) – 2 Large Flanges, 1 Elastometric Spider
Small Flange to Hub (CJSFH) – 1 Standard Hub, 1 Jaw Ring, 1 Elastometric Spider
Double Small Flange (CJDSF) – 2 Jaw Rings, 1 Spider
Spacer Coupling (CJSPC) – 2 Standard Hubs, 1 Spacer, 2 Elastometric Spiders
Drop-out Spacer (CJDSPC) – 2 Standard Hubs, 2 Jaw Rings, 1 Spacer, 2 Spiders
