Large excavator FR510E2-HD
crawlerdiesel

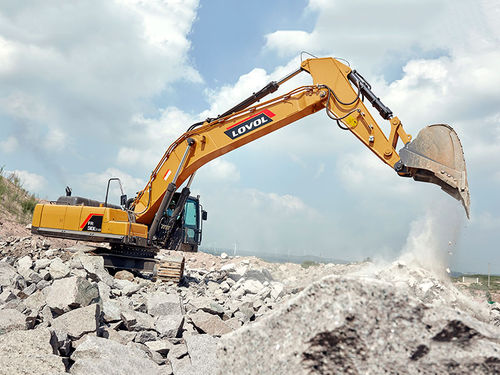

Large excavator - FR510E2-HD - Lovol Heavy Industry Co., Ltd. - crawler / diesel
Large excavator - FR510E2-HD - Lovol Heavy Industry Co., Ltd. - crawler / diesel
Add to favorites
Compare this product


Characteristics

Size
large
Locomotion
crawler
Engine type
diesel
Bucket capacity

2.5 m³
(88.3 ft³)

Operating weight

49,000 kg
(108,026.5 lb)

Engine power

298 kW
(405.17 hp)

Travel speed

Max.: 4.6 km/h
(2.9 mph)

Min.: 2.9 km/h
(1.8 mph)

Tank capacity

Max.: 670 l
(177 gal)

Min.: 0 l
(0 gal)

Description

In order to reduce work fatigue and improve productivity, the noise inside of cab has been controlled to the lowest level. The cab is attached to the frame with buffer that dampens vibrations and sound levels to enhance operator comfort. First-user of function-relief cushion valve system in industry, machine’s respond could keep the same speed even in the extreme cold weather. On the premise of keeping the optimal impact pressure, the starting or switching of working device without any postpone, that makes smooth, efficient and energy-saving operation of machine and reaches to leading level of industry. Powerful Engine The new generation of CUMMINS QSM11 engine originally imported from America which is specially designed for mining applications. Its exclusive PT fuel control and injection technology delivers higher precise and full efficient traits compared to traditional electric controlled high-pressure common rail technology. Electric Control Positive Flow System During the design stage, LOVOL has utilized the latest technologies to develop an integrated hydraulic system. The positive flow control system adjusts the displacement of pump and the motion of valve spool simultaneously, delivering optimal operating experience for the operator with smooth and responsive control. Superb Match Each component in powertrain system, such as engine, gear, rotary motor, working pumps and hydraulic cylinder are specially customized to achieve perfect match with one another, the whole system features are more reliable. Great Digging Force On the premise of ensuring static digging force, LOVOL dedicate to research of dynamic digging force.
