Centrifugal pump e-SH
waterelectricstationary

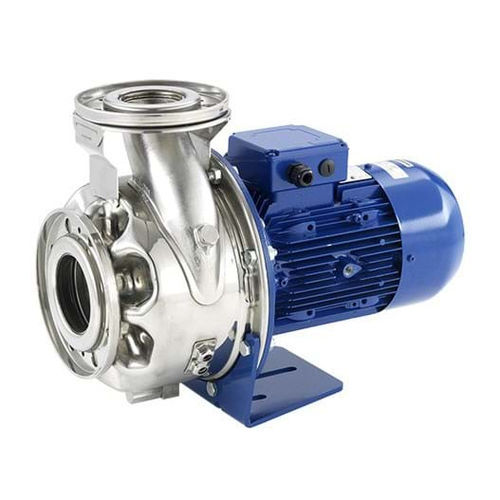

Centrifugal pump - e-SH - LOWARA - water / electric / stationary
Centrifugal pump - e-SH - LOWARA - water / electric / stationary
Centrifugal pump - e-SH - LOWARA - water / electric / stationary - image - 2
Centrifugal pump - e-SH - LOWARA - water / electric / stationary - image - 3
Add to favorites
Compare this product


Characteristics

Technology
centrifugal
Fluid
water
Operation
electric
Mobility
stationary
Domain
industrial, chemical
Material
stainless steel, steel
Other characteristics
mechanical
Flow

Max.: 240 m³/h
(8,475.52001 ft³/h)

Min.: 0 m³/h
(0 ft³/h)

Head

Max.: 110 m
(360'10" )

Min.: 0 m
(0'00" )

Power

Max.: 75 kW
(101.97 hp)

Min.: 0.25 kW
(0.34 hp)

Fluid temperature

Max.: 120 °C
(248 °F)

Min.: -30 °C
(-22 °F)

Description

The Lowara e-SH series is a single impeller centrifugal pump made in AISI 316 stainless steel making it the right pump for moving water and aggressive liquids in a vast number of applications where high chemical resistance is needed. High efficiency and low operation costs Newly designed high efficiency hydraulics with MEI values well above the ErP2015 level and IE3 motors set the basis for very low operation costs. Equipped with a Hydrovar variable speed pump controller, the duty is always exactly where it should be. And it pays off: reducing the speed by 50% reduces the power consumption by 85%. Exactly the right configuration Pump and impellers made in AISI 316 stainless steel with choice of mechanical seals/ motor options makes the e-SH is the right solution for 1000’s of liquids. The e-SH end suction pumps come in three different configurations: Frame mounted (bare shaft or complete with coupling and motor) Stub shaft Close coupled for compact footprint
