Water pump VM
electriccentrifugalstationary

water pump
water pump
water pump
Add to favorites
Compare this product


Characteristics

Fluid
water
Operation
electric
Technology
centrifugal
Mobility
stationary
Domain
industrial
Applications
service
Material
stainless steel, metal
Other characteristics
compact, high-efficiency, combined, electronic, vertical
Flow

Max.: 14 m³/h
(494.40533 ft³/h)

Min.: 0 m³/h
(0 ft³/h)

Pressure

10 bar
(145.038 psi)

Head

Max.: 99 m
(324'09" )

Min.: 0 m
(0'00" )

Power

Max.: 3 kW
(4.08 hp)

Min.: 0.3 kW
(0.41 hp)

Fluid temperature

Max.: 90 °C
(194 °F)

Min.: -10 °C
(14 °F)

Description

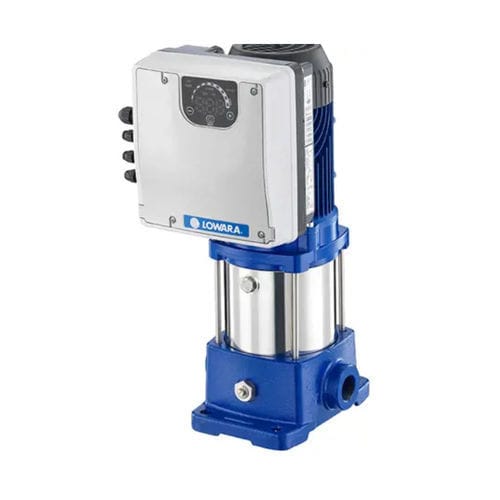

The VM series is a modern, robust designed pump offering reliable water supply for most buildings; from family houses up to 10 floor apartment buildings: State-of-the-art hydraulics with best-in class efficiency combined with IE3 motors mean the lowest possible operating costs. Thick sheet metal casing, high-quality bearings and stainless steel guarantees a long service life. High-efficiency hydraulics, motor and thick sheet metal pump body keep the noise level to a minimum. Close coupled motor and threaded connections for compact installations. The VM vertical multistage pump is available in different versions: Bare pump On/ off system with pressure switch and pressure tank Semi constant pressure system with Genyo electronic pump controller Constant pressure system with ResiBoost variable speed controller Constant pressure system; Smart Pump with ultra premium efficiency IES2 variable speed package including IE5 motor and communication with BMS systems
