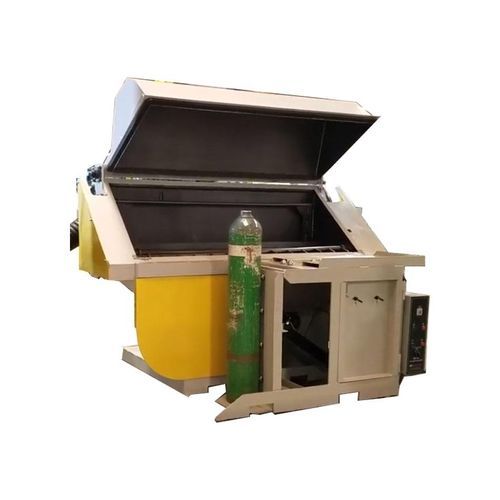

Belt shot blasting machine BSC-20

manualfor cylinders

The BSC20 Cylinder Shot Blaster is a small footprint batch blaster for handling cylinders up to 20” in diameter and up to 68” long. The robust design with easily replaceable wear liners and belt driven motors contribute to the low maintenance of the machine. The BSC20 has a clam shell door that allows for overhead loading and it also has lift tables for loading and unloading of the cylinders. The pneumatic cylinder kickout bar also makes unloading the cylinders easy. The LS TurboShot™ Blast Wheel distributes high volumes of shot and the blades are bi-directional at a medium velocity and are belt-driven to protect the motor. The BSC20 cylinder blaster includes many safety features for the operation, including dual hand controls and a door locking valve to prevent the door from closing in the case of lost air pressure. Features Load Lift Table Yes Unload Kicker Yes Pneumatic Door Yes Shell Door / Overheard Loading Yes Technical Specifications Work Envelope (Cylinder Size) 20″ Dia x 68″ L Overall Dimensions 8′ x 6′ x 7′ (w/lid open) HP of Blast Wheels (STD)* 2ea x 10HP Dust Collector Std** DC-5
