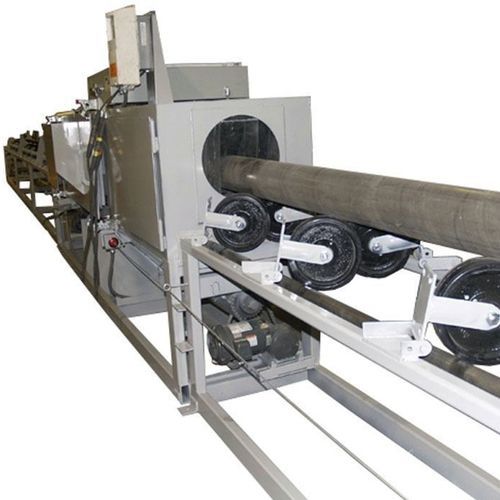

Manual shot blasting machine PB 2-12

for pipeautomaticcompact

The OD Pipe Blaster PB2-12 is designed to blast the outside surface of pipe from 2” to 12” in diameter. The LS TurboShot™ blast wheels are gravity fed which keeps the machine compact and easy to maintain. The underthrow blast wheels maintain the same distance to the pipe and the shot pattern is concentrated directly to produce an even blasted surface on the pipe. The shot is contained in the machine with drop in curtains. Features Automatic Shot Adder Optional Parts Sensor Optional Changeable Flap for Different Size Pipes Optional Extension Conveyors Optional Load Table Optional Unload Table Optional Automatic Indexers Optional Technical Specifications Work Envelope (Pipe Diameter Min/Max) 2″-12″ Overall Dimensions 14′ x 5’6″ x 7’8″ No. of Blast Wheels (STD)* 2ea x 20HP Conveyor Roller Spacing (STD) 36″ Conveyor Height (STD) 46″ Dust Collector*** DCC-5
