Manual shot blasting machine ID 2.375-7

for tubescontinuousautomatic

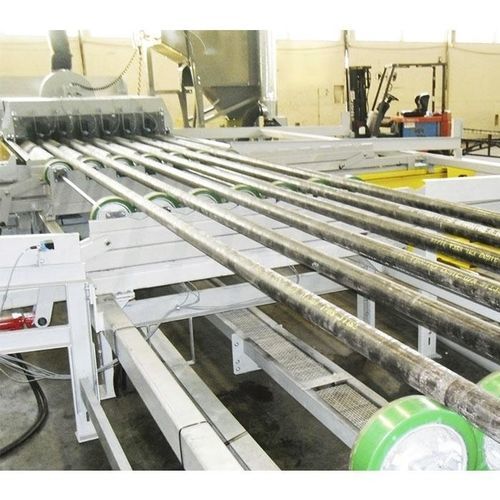

The LS ID Pipe Blaster 2.375-7 is a 6-lance system that will blast the internal surface of up to 6 pipes at one time with a diameter of 2.375” to 7”. The 6 lances are mounted on a mechanically driven cart. The blaster’s heavy-duty construction will be a reliable and long-lasting blasting solution. The machine includes a standard PLC to control the feed and speed parameters on each of the lances. The machine includes sealed shot and dust containment cabinets. The lower cabinet is mechanically driven to adjust for different lengths of pipe and is controlled by the PLC system. The ASME certified LS blast pot is a dual chamber automatic refill system for continuous blasting. Features Pipe True Track Optional Pipe Kicker Yes Load Table Yes Unload Table Yes Pneumatic Door N/A Technical Specifications Work Envelope (Pipe Diameter Min/Max) 2.375″-7″ Pipe Length Range (Min/Max)** 25′-34′ Overall Dimensions 155′ x 34′ x 16′ No. of Lance (STD)* 6 Dust Collector*** DCC-30-A
