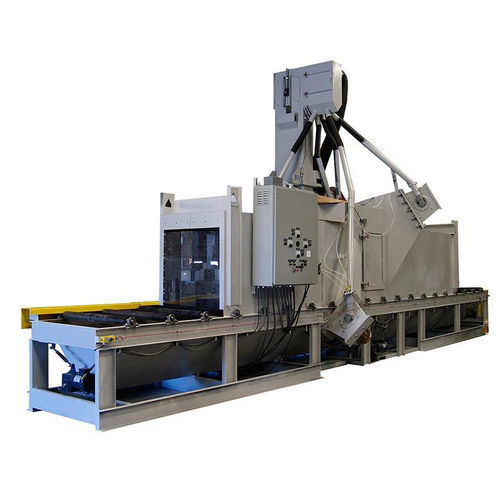

Manual shot blasting machine STRB 24×36

for metalautomatic

The LS Industries STRB 24×36 Structural Blaster is versatile machine designed to automate the blasting process. Parts are carried on conveyor rollers through the blast zone with an ‘X’ pattern so that all surfaces are evenly blasted. The LS SureShot™ blast wheels throw a medium volume of shot at a high velocity to achieve the desired blast finish. Optional controls can be placed on the blast to even further control that finish. The conveyor speed is variable as well. The SureShot™ wheel is bi-directional and designed for easy maintenance with quick blade change technology. The blaster is designed for long life as well with a heavy-duty manganese blast cabinet and easily replaceable manganese wear liners. Access doors for the elevator, augers and blast zone also make regular maintenance easy. To extend the life of the blaster LS includes sensors that will only allow blasting when parts are detected in the blast zone. Features Full Upper Air Wash Optional Side Air Wash Standard Automatic Shot Adder Optional Elevator Jam Auto Shutdown Standard Parts Sensor Standard Shot Hopper with High/Low Shot sensor Optional Parts Blow Off Optional Maintenance/Service Platform Optional Technical Specifications Work Envelope 24″W x 36″H Overall Dimensions (L x W x H) 36′ x 9′ x 17′ No of Blast Wheels (STD)* 4ea x 20HP Conveyor Roller Spacing (STD) 21″ Conveyor Roller Height (STD) 42″ Dust Collector*** DCC-10
