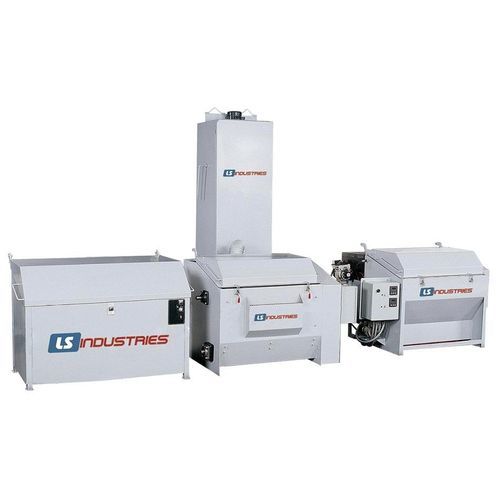

Thermal cleaning system TCS44

processparts

Reduce Cleaning Time by 50% or More with this powerful cleaning team of Oven, Blaster and Cool Down Shaker. A universal basket means far less handling as parts travel from one process to the next. The optional transfer cart further reduces the material handling. The Oven features a balanced burn tube for even heat throughout the cabinet. No direct flame ever touches the parts. The LS 44EN is the fastest non-direct flame, rotisserie oven on the market. No hot spots – even heating throughout the cabinet. The Blaster features a full-length, cast chrome, one-piece balanced impeller producing a solid shot curtain for consistently even cleaning and less shot replacement. Designed and engineered for easy, economical maintenance. The Shaker removes shot and quickly cools the parts to a safe handling temperature with a forceful 2850 cfm blower. Technical Specifications Basket Size 44” L x 20” W x 20” H Basket Capacity 8 head or 1 block Main Burners 2 Total Heat Cap 557,000 BTU HC, Main Burner 212,000 BTU HC, Afterburner 133,000 BTU Cleaning Temperature 300 degrees to 750 degrees Stack Size 8″ (203mm) Gas 6″ (152mm) Electrical 208V-0220V/1PH 220V/3PH 440V/3PH Capacity Door Open: 79″ (2006mm) Weight: 2200lbs
