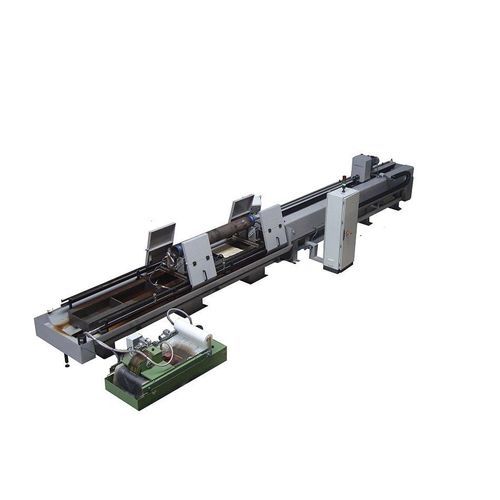

CNC honing machine LS-CNC-THX

automatic

The hone is constructed in two pieces, the honing section, and the work-holding section. The hone section is made from welded structural tubing, with excellent rigidity. On the top of this section there is a base that supports the honing head, and displacement guides that moves the hone head back and forth. The hone head inline movement is driven electronically. The hone head rotation turns thru a variable reducing motor, that allows the hone head to cover the 1.58” – 32” honing range. The R.P.M change is done manually. The hone head expansion is done electronically by a motor and reducer, directly from the control panel. There are two steady-rests, one fixed at the end of the table, and another one that is movable to help support the work piece. The control box is located in the center of the machine, in which the height and orientation makes it easy to access. The machine runs on an automatic preset timer cycle. Included is the custom software tailored for your application. Standard equipment includes filters and honing oil. Features Easy and quick set up and operation Touch screen operation panel Axial stroke and speed regulated from panel Fast taper correction Low noise honing machine High axial and rotation torque to decrease time High precision electro-mechanical expansion system Driver controlled Easy tube clamping device Technical Specifications Maximum Weight Admitted on Table 10,000 pounds Hone Head Rotation 13 – 350 R.P.M. Variable Drive Velocity 18’ – 98’ per minute Drive Motor 10 Hp Rotation Motor Expansion Motor Pump Motor 7.5 Hp Pump Volume 1 Hp Voltage 3/4 Hp Hand Control Voltage 16 Gal/Min
