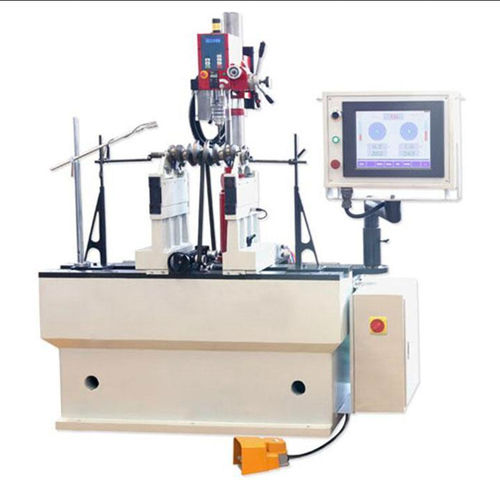

Balancer XLX

The LS Industries XLX Precision Electronic Balancer creates smoother, longer lasting engines that delivers more power and better mileage. A balanced engine operates with less stress on the internal components. And the LS XLX is easy to use, it will not require a skilled machinist to operate effectively. Features Sophisticated electronics PLUS extremely versatile and simple to operate Direct readout – NO calibration necessary Balances at ANY speed – exclusive feature. A wide variety of balancing jobs are possible the most versatile machine. Automatic speed compensation – DOES NOT require setting a specific balancing RPM Can balance work pieces inboard and outboard – exclusive feature Includes 5 potentiometers for plane separation electronics – between counterweights to accurately determine left to right percentage of influence The three EXTRA potentiometers give you the capability of balancing a wide variety of work pieces other than crankshafts Technical Specifications Cycle Time 5 Seconds Balance RPMs Variable Unbalance Resolution +/- 0.1 gm/inch Setup Units Inch Unbalance Units Ounces or Grams Weight 3,300 lbs. (1,496 kg) Electric 230V, 60Hz, 3 Ph Drill Motor 1.5 Hp (1.118 kW) Drive Motor 1 Hp (0.745 kW) Dimensions 83″L x 28″W x 74″H (1,346mm x 711mm x 1,880mm)
