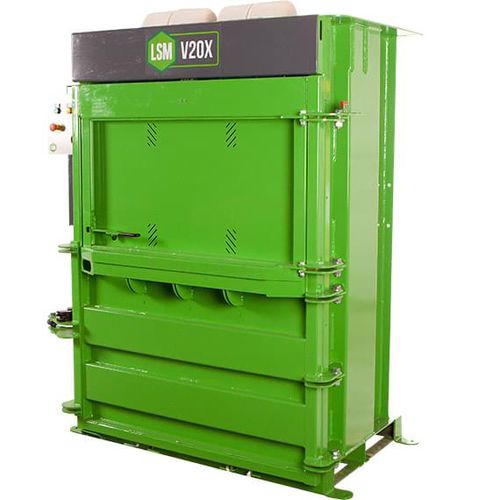

Vertical baling press V20X

front-loadingfor cardboardfor paper

Designed with a low overall height and an incredibly powerful cross-ram press, the V20X is an ideal solution for medium-volume users with access and ceiling height issues. With a pressing force of up to 25 tonnes, the V20X can efficiently bale cardboard, plastic, paper, textile and food waste in a compact space. Recommended for markets, stores, hotels and any medium-volume users with low ceilings or other access issues. FEATURES Low and narrow for use in areas with 2-metre ceilings and 1-metre wide doorways Easy installation offers ‘plug-and-play’ capability Cross ram and long-stroke cylinder for optimum compression in a small space 250 kg cardboard bale High compaction ratio creates ideal 250 kg + bales Heavy duty door clamp “Bale Full” indicator light helps ensure safe operation at multi-user sites Low power consumption yet powerful compaction SPECIFICATIONS Bale size: 800mm H (variable) x 1100mm W x 750mm D Cycle time: 35 Seconds Dimensions: 1970mm H x 1695mm W x 865mm D Fill opening: 1100mm W x 625mm H Integrated bale kicker Machine weight: 980 kg Power: 3 Phase 380/400 volt. 3 kW motor Noise level: 74 dB EN 16,500 Compliant IP54 Standards E Power Standards PLC type controller with bale full light and auto cycle OPTIONS Marine specification Single phase 220V 50Hz 2 kW motor 3 Phase 220 V Electronic weighing system Annual service contract Galvanised Automatic opening guillotine door Drop down front door
