Vertical baling press V50

front-loadingfor cardboardfor paper

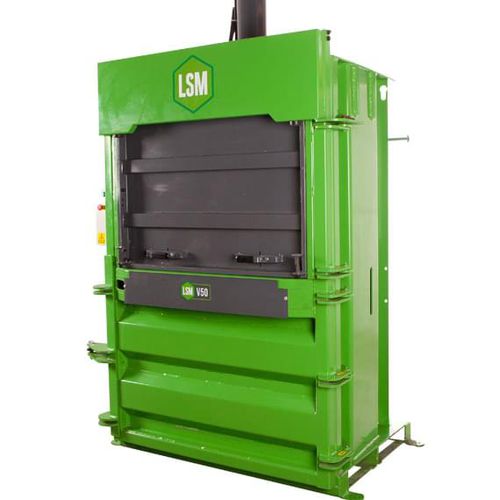

Ideal for high-volume users looking to turn waste material into revenue, the V50 is a true 50-tonne press that creates the optimal size bale for transport and revenue return. Its powerful integrated kicking mechanism helps eject the finished bale directly onto a pallet, minimising risk to the user. The V50 is easy to use and uncompromising in its performance, efficiently compacting cardboard, plastic, textile, paper, polystyrene and aluminium waste day in and day out. Note: V50 shown with optional automatic opening guillotine door. Recommended for supermarkets, wholesalers, department stores, manufacturing plants, logistics centres, multi-product recycling plants. FEATURES True 50-tonne pressing force and long-stroke cylinder for maximum compaction, producing 400 - 500 Kg bales Automatic and manual cycles for cardboard versus higher-memory material like plastic Unique configuration of floating and fixed retention fingers helps optimise baling Easily adjustable bale height Simplified low-voltage user controls, integrated powered bale kicker, easy-tie system and heavy duty door clamp for easy and safe operation External power pack for easy service and maintenance Ideal bale size for euro pallets SPECIFICATIONS Bale size: 1000mm H (variable) x 1200mm W x 800mm D Cycle time: 45 seconds Dimensions: 3055mm H x 1985mm W x 1130mm D Fill opening: 1200mm W x 640mm H Machine weight: 1870 kg Power: 3 Phase 380/400 volt. 7.5 kW motor Noise level: 74 dB EN16,500 Compliant IP 54 Standards PLC controller with auto cycle and bale full light OPTIONS Tractor Mounted Marine specification Automatic opening guillotine door e-Power (3 Phase 380/440 volt 4 kW motor) PET version Rear fill
