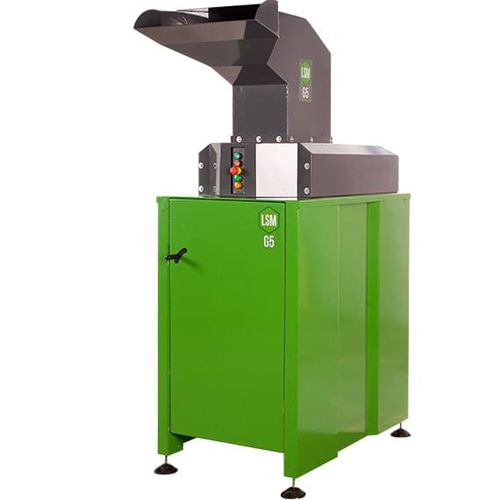

Vertical pre-crusher G5
glass220V single phase

Vertical pre-crusher - G5 - LSM Recycling Equipment - glass / 220V single phase
Vertical pre-crusher - G5 - LSM Recycling Equipment - glass / 220V single phase
Vertical pre-crusher - G5 - LSM Recycling Equipment - glass / 220V single phase - image - 2
Vertical pre-crusher - G5 - LSM Recycling Equipment - glass / 220V single phase - image - 3
Vertical pre-crusher - G5 - LSM Recycling Equipment - glass / 220V single phase - image - 4
Vertical pre-crusher - G5 - LSM Recycling Equipment - glass / 220V single phase - image - 5
Vertical pre-crusher - G5 - LSM Recycling Equipment - glass / 220V single phase - image - 6
Add to favorites
Compare this product


Characteristics

Orientation
vertical
Product applications
glass
Power supply
220V single phase
Motor power

2 kW
(2.72 hp)

Sound pressure

70 dB

Machine width

710 mm
(28 in)

Machine height

1,955 mm
(77 in)

Machine weight

320 kg
(705 lb)

Description

Designed to crush glass bottles up to 2 litres in size, the G5 is capable of processing 60–100 bottles per minute and provides a volume reduction ratio of 5:1, reducing collection costs by up to 60% and saving huge amounts of space. This machine produces a sharp free glass cullet which is variable in size. Recommended for restaurants, pubs, bars, hotels, nightclubs, bottling plants, recycling plants. FEATURES Easy-fill Variable size cullet 5:1 volume reduction ratio SPECIFICATIONS Reduction: 5:1 Filling height: 1650mm Bin full light Adjustable cullet size from 2mm to 15mm Throughput: over 2 tonnes per hour IP54 Rating OPTIONS Marine specification Dust extraction Galvanised Electronic weighing system

VIDEO
