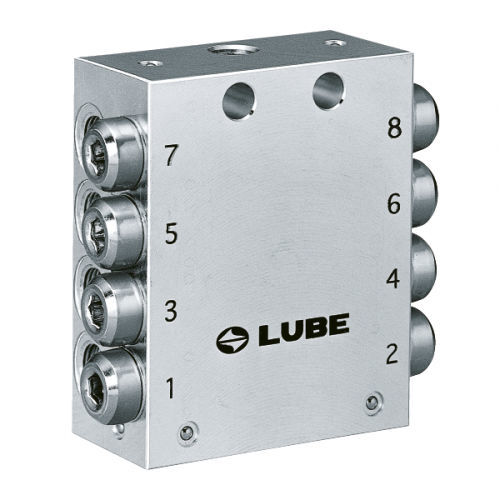

Lubrication system valve SP seriesballmanualaluminum
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Body
- aluminum
- Applications
- for lubrication systems
- Associated function
- discharge
- Other characteristics
- grease
- DN
4 mm, 6 mm
(0.157 in, 0.236 in)- Pressure
Max.: 20 MPa
Min.: 2 MPa
Description
Progress method
Grease progressive valve SP
For tightening torque
Discharge volume -
0.2mℓ/ stroke
Discharge port -
Tube of 6mm, 4mm O.D used
Grease inlet -
Rc1/8
Max. working pressure -
20MPa
Minimum operating pressure -
2MPa
Working consistency -
NLGI No.000〜No.2
Performance monitor -
Indicator pin (K type)
Material -
Aluminum
NLGI n°000～n°2
Moniteur de performances -
Broche indicatrice (type K)
Matériel -
Aluminium
