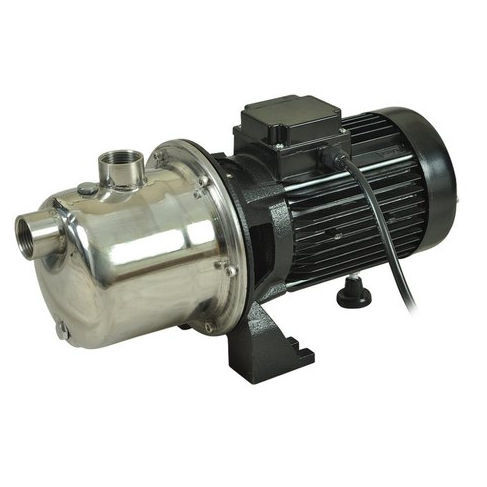

Water pump SMSJ series
with electric motorself-primingimpeller

water pump
water pump
water pump
water pump
water pump
water pump
Add to favorites
Compare this product


Characteristics

Fluid
water
Operation
with electric motor
Priming
self-priming
Technology
impeller
Mobility
stationary
Domain
industrial
Applications
discharge
Material
stainless steel, ceramic, metal
Other characteristics
suction, mechanical, standard, axial, radial, seal
Flow

Max.: 5.4 m³/h
(190.6992 ft³/h)

Min.: 0 m³/h
(0 ft³/h)

Head

Max.: 40 m
(131'02" )

Min.: 0 m
(0'00" )

Length

390 mm, 435 mm
(15 in, 17 in)

Width

170 mm, 213 mm
(6.69 in, 8.39 in)

Height

239 mm
(9.41 in)

Weight

10.5 kg, 12.5 kg
(23.15 lb, 27.56 lb)

Description

The pump casing shall be fabricated from AISI 304 stainless steel sheet metal and shall have axial suction and radial discharge port. The pumps shall have closed type impeller with material of construction of AISI 304 stainless steel sheet metal. The Pump shaft sealing shall be by mechanical shaft seal of Carbon/Ceramic/NBR/AISI 304 construction suitable for 10 bar pressure rating and water temperature from 0 to +90 deg. C. The Motor will be suitable for 1 phase, 230volts, 50 Hz (Standard Supply), 3 phase, 415volts, 50 Hz. All Fabricated stainless steel pump components shall be manufactured in house by the manufacturing company.
